Robotic material handling ABB Autonomous Mobile Robots (AMR): logistics 4.0

ABB Autonomous Mobile Robots (AMR): logistics 4.0

ABB

In the dynamic context of modern logistics, ABB's Autonomous Mobile Robots (AMRs) are emerging as key players in the 4.0 transformation. These AMRs, operating without drivers, ensure uninterrupted operations, 24 hours a day, 7 days a week. They are shaping the future of efficient goods flows, and revolutionizing management practices in transport and warehousing operations. Among the cutting-edge technologies guiding these AMRs, the SLAM (Simultaneous Localization and Mapping) method is positioned as the central engine of their autonomous, intelligent navigation.

The benefits of ABB autonomous mobile robots

Automated forklifts are more than just a passing trend. They embody a fundamental transformation in the management, transportation and processing of goods within warehouses. By freeing workers from the most arduous transport tasks, ABB AMRs increase productivity while minimizing errors and incidents.

As exclusive distributor, Aprolis offers a diverse range of automation solutions, including Automated Guided Vehicles, tractors and automated forwarders. All these models incorporate advanced navigation and safety technologies, guaranteeing smooth and safe operation.

ABB AMR: your partner for innovative transport management

As versatile assistants, ABB AMRs are a convincing response to the growing demand for automation in logistics.

  • With their exceptional autonomy and enhanced maneuverability, these robots provide a ready-to-use solution for ground transportation of goods over large areas.
  • Their adaptability enables seamless integration into intralogistics flows, facilitating human/machine cohabitation and simplified interfacing with various warehouse management software packages (WMS, ERP, etc.). This immediate synergy enhances efficiency in various sectors and fields of application.
ABB mover
ABB Tug

Versatility at work: Practical applications for Autonomous Mobile Robots

AMRs offer a wide range of applications adapted to multiple logistics scenarios, including:

  • Heavy load transport
  • Towing trailers
  • Agile movement of pallets, goods and small parts
  • Automated rack loading and unloading
  • Transport of varied loads
  • Smooth cooperation with other AMRs and AGVs

Process Optimization: Order Picking with AMR

One of the most remarkable applications of AMRs is in goods-to-person order picking. These robots enable:

  • Pick individual orders and route them to picking stations
  • Use to transport a wide variety of loads, such as mobile shelving and table-top boxes
  • Significantly reduce the risk of errors compared to manual methods
  • Continuous supply of line edges.
ABB
ABB

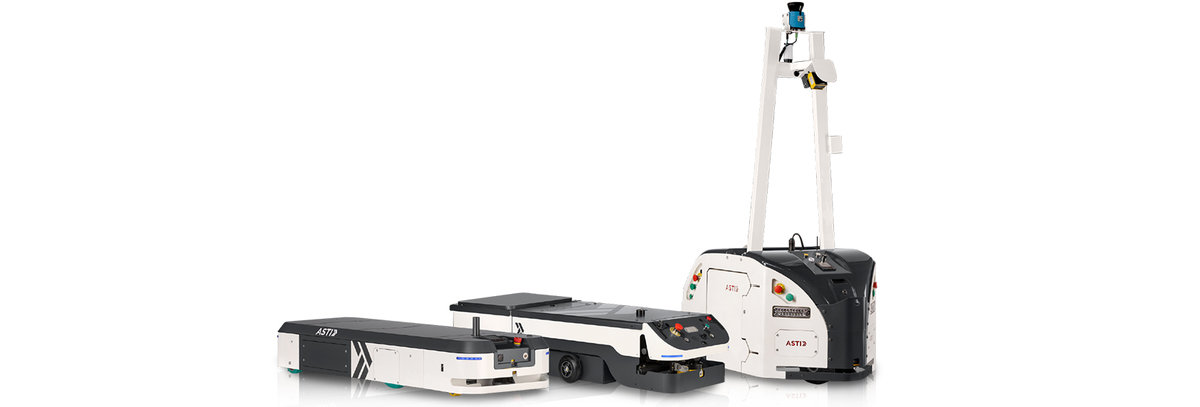

AMR "Flexley Tug" optimized for intralogistics handling

With compact dimensions, generous capacity and exceptional maneuverability, our "Flexey Tug" series of Autonomous Mobile Robots (AMRs) presents a robust, easy, safe and adaptable solution for moving carts. Subject to rigorous performance and safety validations, these robots are operational 24/7, positioning themselves as tireless partners for intralogistics towing applications.

ABB AMR T701

Technical data

  • Towing capacity: 800 N
  • Max. payload 2000 kg
  • Unidirectional movement
  • Turning radius: 600 mm

ABB AMR T702

Technical data

  • Traction capacity: 1600 N
  • Max. payload 2000 kg
  • Bidirectional movement
  • Turning radius: 600 mm

ABB AMR T801

Technical data

  • Pulling capacity: 3200 N
  • Max. payload 5000 kg
  • Unidirectional movement
  • Turning radius: 1150 mm

ABB AMR T901

Technical data

  • Traction capacity: 7200 N
  • Max. payload 10,000 kg
  • Unidirectional movement
  • Turning radius: 1270 mm

The advantages of AMR "Flexley Tug" tractors

Thanks to its user-friendly interfaces and proven performance, our range of AMRs offers ease of use that guarantees optimum performance, generating high productivity and reduced operational costs in your intralogistics operations. Our Flexley Tug robots provide a solution that's easy to install, operate and maintain.

NOur new 2.0 evolution also incorporates SLAM navigation technologies, faster loading systems and increased load capacity.

The ideal solution for towing in logistics and manufacturing flows. With its high load capacity and compact dimensions, our unbeatable range of Flexley Tug vehicles can be adapted to a wide variety of wheeled carts and containers.

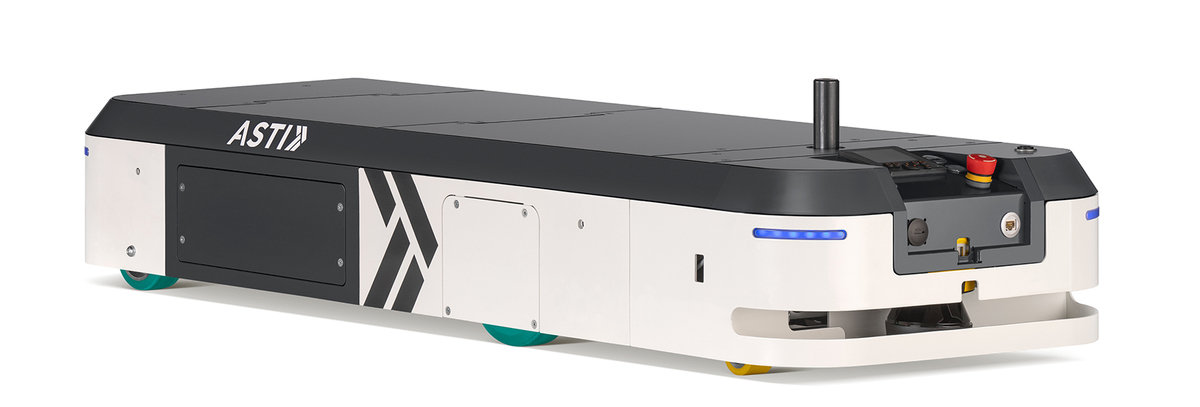

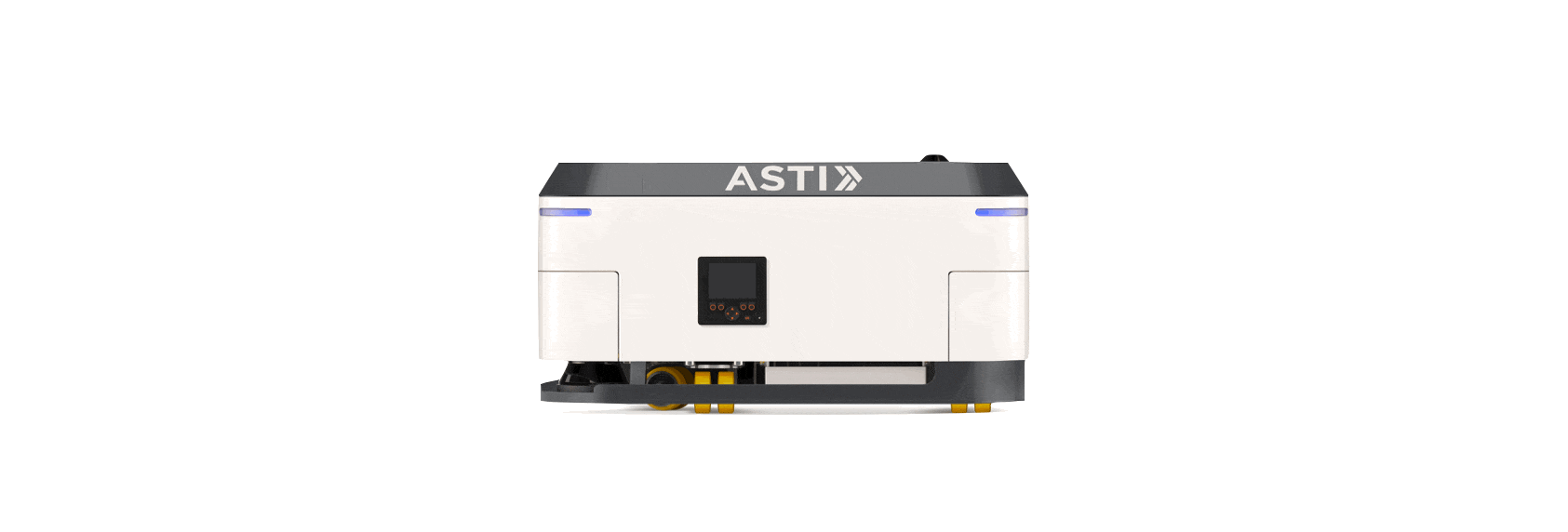

Autonomous Mobile Robots (AMR) - "Flexley Mover" carriers

Featuring excellent maneuverability thanks to its compact design and omnidirectional technology with in-place rotation. Our Flexley Mover AMRs are equipped with the latest navigation systems and technologies, offering increased agility and efficiency for moving your goods in intralogistics.

ABB AMR T304

Technical data

  • Max. payload 600 kg
  • Lifting height: 120 mm
  • Omnidirectional movement
  • Turning radius: 0 mm

ABB AMR T404

Technical data

  • Max. payload 1000 kg
  • Lifting height: 120 mm
  • Omnidirectional movement
  • Turning radius: 0 mm

ABB AMR T604

Technical data

  • Max. payload 1500 kg
  • Lifting height: 180 mm
  • Omnidirectional movement
  • Turning radius: 0 mm

Why choose Flexley Mover robots

This innovative range of robots is designed to meet your business needs in terms of operational flexibility, responsiveness, peak demand management, productivity and safety, as well as for the delivery of carriers, pallets, containers, boxes or hanging garments in confined spaces and narrow aisles.

Thanks to intelligent navigation technology, combined with advanced software intelligence, this range of ABB AMR robots can perform operations from multiple origin points to multiple destinations to meet the high demands of your logistics processes.

Our Flexley Mover range can transport carriers with all kinds of product combinations, containers of different sizes and pallets of all types - from Euro pallets to American pallets and special-size pallets.
