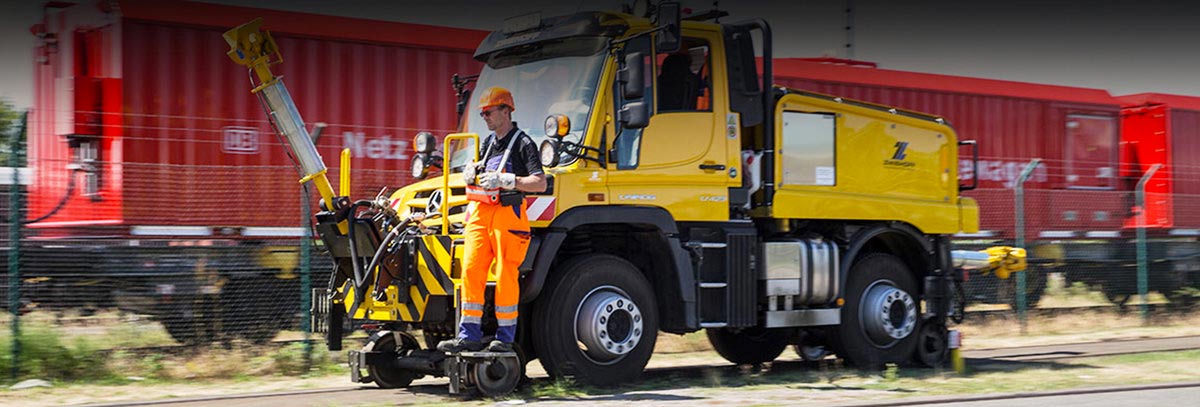

The versatility and performance of the Mercedes-Benz Unimog tool carrier road-rail vehicle system

The versatility of Unimog road-rail vehicles is based on their efficient and economical operation on road and rail.
Whether on or off-road, the wide range of tools and auxiliary equipment enables the Unimog to carry out a large number of varied and necessary maintenance tasks. Unimog is renowned throughout the world for its high efficiency, quality and exceptional durability.

On rails

The Unimog equipped with railway wheels makes it a valuable road-rail utility.

With its special accessories, the Unimog can carry out shunting, track laying, service, repair and maintenance work, as well as emergency snow removal and rescue work.

The Unimog road-rail vehicle arrives at the workplace by the shortest and fastest route, making it a perfect all-round vehicle, meeting and often exceeding the requirements of customers and railway authorities.

Getting on the rails is quick and easy. Unimog's road-rail vehicles only need a 5-metre section of level track for this.

Request contact

Unimog



Unimog UGE 423

With the new Unimog generation, Mercedes-Benz is fulfilling every possible technical requirement of the railway world. The vehicle recommended for road-rail use is the Unimog U 423. Reinforced axles and a payload increased by 1 tonne mean that it is capable of optimum traction force and even more power left over for towing jobs.

The powerplants fulfil the criteria of the new Euro 5 antipollution standard. They also contribute to protecting the environment, the reduction of CO2 emissions and better fuel economy.

Cab

Composite, 2-seater capacity, with cab tilting system, integrated air conditioning, panoramic laminated glass windscreen, 2 wide angle rear-view mirrors with electric adjustment and heating, digital tachograph, passenger seat, sliding rear window, centre console with control of hydraulic and mechanical functions.

Cab

Composite, 2-seater capacity, with cab tilting system, integrated air conditioning, panoramic laminated glass windscreen, 2 wide angle rear-view mirrors with electric adjustment and heating, digital tachograph, passenger seat, sliding rear window, centre console with control of hydraulic and mechanical functions.

Cab

Composite, 2-seater capacity, with cab tilting system, integrated air conditioning, panoramic laminated glass windscreen, 2 wide angle rear-view mirrors with electric adjustment and heating, digital tachograph, passenger seat, sliding rear window, centre console with control of hydraulic and mechanical functions.

Cab

Composite, 2-seater capacity, with cab tilting system, integrated air conditioning, panoramic laminated glass windscreen, 2 wide angle rear-view mirrors with electric adjustment and heating, digital tachograph, passenger seat, sliding rear window, centre console with control of hydraulic and mechanical functions.

Cab

Composite, 2-seater capacity, with cab tilting system, integrated air conditioning, panoramic laminated glass windscreen, 2 wide angle rear-view mirrors with electric adjustment and heating, digital tachograph, passenger seat, sliding rear window, centre console with control of hydraulic and mechanical functions.

Cab

Cabine

Cab

Cabine

Cab

Cabine

Cab

Cabine

Cab

Cabine

Guide system

  • Rail guide system comprising single 400 mm diameter rollers with guide shafts each fitted with 2 cylinders for lift/lower actions
  • Control console in operator’s cab
  • Pressure monitoring of guide shafts using indicator and audible alerts
  • Front wheel steering lock for travelling on rails
  • Manual emergency pump for raising the rail axles

Request contact





Locking system

Mechanical steering lock on the steering column









Railway lighting

Lighting for both directions of travel (front and rear red and white lamps)









Radio guidance

To allow shunting to be carried out by a single operator





Wagon braking

  • Braking for 52 wagon axles
  • Hydraulic drive screw compressor by auxiliary pump, flowrate 1750 litres/min
  • 5 x 85 L spare tank capacity
  • Spare air pressure 10 bars
  • Brake pressure 5 bars
  • Electronic control carriage brake handle
  • Optical and acoustic signalling
    - Pneumatic railway horn
    - Emergency electric horn
    - Revolving light on driver’s side

Cameras

The equipment has 3 cameras with colour monitor in the cab offering the operator easier and safer shunting capabilities:

  • 2 cameras with views on the forward and rear lorries to facilitate shunting manoeuvres on rails
  • 1 camera with a panoramic rear view and a view of the rear coupling, giving a full safe view of carriage couple/uncouple operations.
Système de blocage
Eclairage ferroviaire
Radio guidage

Wagon braking

Freinage wagons

Cameras

Freinage wagons

Head of shunting platform

Applications



Snow clearing operations







Snow clearing operations







Maintenance operations







Catenary wire servicing operations





Environment & mowing service operations





Towing operations







Towing operations







Snow clearing operations





Opérations de déneigement



Snow clearing operations





Opérations de déneigement



Maintenance operations





Opérations de maintenance



Catenary wire servicing operations



Opérations d’entretien des caténaires



Environment & mowing service operations



Opérations d'entretien



Towing operations





Opérations de traction



Towing operations





Opérations de traction
